Description :

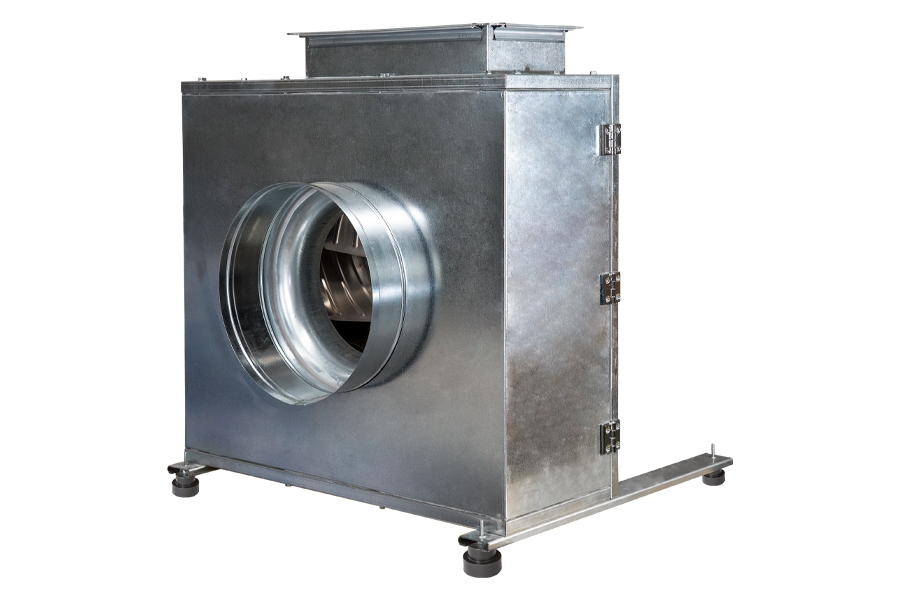

KEF-M fans can be connected to kitchen hoods to exhaust the air from cookers, grilles, fryers etc. It will exhaust the greasy air and keeps the kitchen area clean and odorless. Inspection hatch allows cleaning the fan and maintenance. Motor is located out of the airstream and is not effected by matters in the air.
| MOTOR YALITIM SINIFI | IP 55 |
| MOTOR KORUMA SINIFI | F SINIF |
| MOTOR VERIM SINIFI | IE2-IE3 |
| MOTOR TİPİ | TEFC |
| MOTOR MARKASI | OMEGA-GAMAK-VOLT-WAT |
| GÖVDE MALZEMESİ | GALVANİZ SAC |
| GÖVDE KAPLAMASI | OPSİYONEL |
| PERVANE TİPİ | GERİYE EĞİMLİ |
| PERVANE MALZEMESİ | ALÜMİNYUM METAL LEVHA |
| GÖREV DÖNGÜSÜ | IEC GÖREV DÖNGÜSÜ-S1 |
| ÇALIŞMA ORTAM SICAKLIĞI | -20 - +50 °C |
| STANDART |
IEC-60335-2-80 ISO 1940-1 |
TEKNİK ÖZELLİKLER
| MODEL | VOLTAJ (V) | FREKANS (Hz) | GİRİŞ GÜCÜ(kW) | HIZ (RPM) | HAVA DEBİSİ (m3/h) | SES SEVİYESİ dB(A) 3m | AĞIRLIK (KG) |
|---|---|---|---|---|---|---|---|
| KEF-M 315 | 380 | 50 | 0,25 | 1469 | 1600 | 53 | 32 |
| KEF-M 355 | 380 | 50 | 0,37 | 1471 | 2300 | 55 | 34 |
| KEF-M 400 | 380 | 50 | 0,55 | 1478 | 3300 | 58 | 38 |
| KEF-M 450 | 380 | 50 | 0,75 | 1454 | 5000 | 50 | 49 |
| KEF-M 500 | 380 | 50 | 1.1 | 1462 | 7000 | 63 | 62 |
