Description :

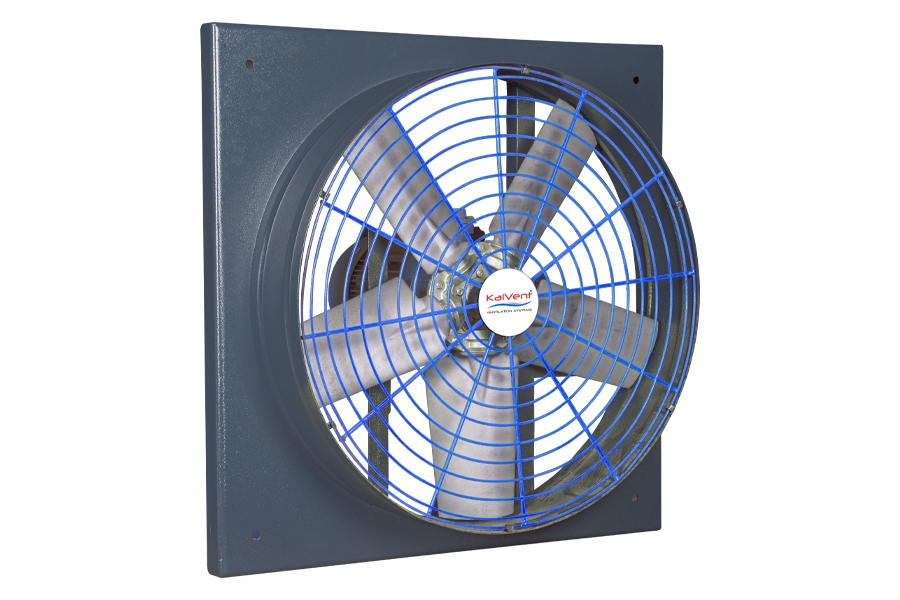

KWS is wall-window type axial fan which is used for extracting poorly polluted air indoor spaces or supplying fresh air from outside between min. 2.000 m3/h and max. 8.000 m3/h air flow range. Blades are designed for quiet and high air flow rate and it has protection grill on both side. It is suitable for industrial ventilation of large volume places such as factory, warehouse, farms, paint shop, welding shops etc.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| MOTOR BRAND | GAMAK-VOLT-WAT |
| MOTOR ENCLOSURETYPE | TEFC |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | PLASTIC |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KAXP 400 | 230/380 | 50 | 0,37 | 1400 | 3500 | 69 | 19 |
| KAXP 450 | 230/380 | 50 | 0,55 | 1400 | 4400 | 69 | 21 |
| KAXP 500 | 230/380 | 50 | 0,55 | 1400 | 6000 | 72 | 30 |
| KAXP 560 | 230/380 | 50 | 0,75 | 1400 | 8200 | 75 | 34 |
| KAXP 630 | 230/380 | 50 | 1,1 | 1400 | 14000 | 80 | 46 |
| KAXP 710 | 230/380 | 50 | 1,50 | 1400 | 20000 | 83 | 59 |
| KAXP 800A | 230/380 | 50 | 2,2 | 1400 | 26000 | 89 | 71 |
| KAXP 800B | 230/380 | 50 | 3 | 1400 | 32000 | 90 | 77 |
| KAXP 900A | 380 | 50 | 4 | 1400 | 40000 | 94 | 83 |
| KAXP 900B | 380 | 50 | 5,5 | 1400 | 48000 | 94 | 85 |
| KAXP 1000 | 380 | 50 | 7,5 | 1400 | 56000 | 99 | 97 |
