Description :

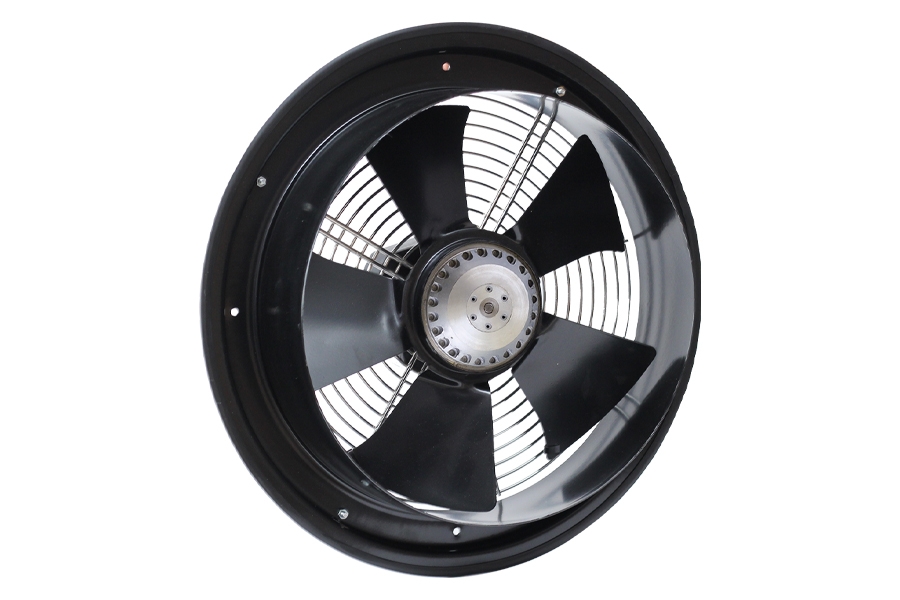

KWAR is wall-window type axial fan which is used for cooling of machines, cooling of electrical panels, cooling of welding machines and in all residential places between min. 650m3/h max. 2.200 m3/h air flow capacity to remove the polluted air of the environment or to supply fresh air.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | H CLASS |
| MOTOR ENCLOSURETYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KWAR 200 | 230 | 50 | 70 | 2670 | 650 | 50 | 2,7 |
| KWAR 250 | 230 | 50 | 70 | 2215 | 1480 | 55 | 3,6 |
| KWAR 300 | 230 | 50 | 125 | 1750 | 2200 | 57 | 4,6 |
