Description :

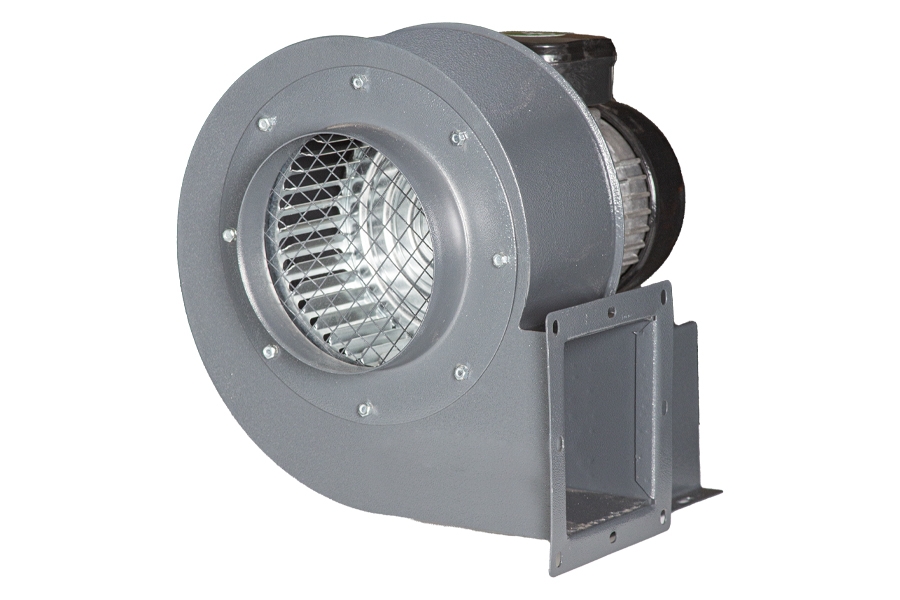

KOBR 200 fans motor out of air flow, it can be used as an ideal solution for the transfer of air at high temperatures or as a component part of the machines in multi-purpose drying, cooling, heating processes or commercial kitchen hood ventilation applications. It can be used for packaging, plastic injection, ironing machines, greenhouses, restaurant hood ventilation etc.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | B CLASS |
| MOTOR ENCLOSURE TYPE | AC - TEFC |
| BODY MATERIAL | SHEET METAL |
| IMPELLER TYPE | FORWARD CURVED |
| BODY COATING | ELECTROSTATIC POWDER COATING |
| IMPELLER MATERIAL | GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KOBR 200M 2K | 230 | 50 | 450 | 2770 | 1800 | 54 | 9,3 |
| KOBR 200M 4K | 230 | 50 | 190 | 1450 | 850 | 49 | 9,3 |
| KOBRS 200M 2K (Backward Curved) | 230 | 50 | 260 | 2900 | 1700 | 54 | 9,3 |
| KOBR 200T 2K | 380 | 50 | 140 | 2900 | 1800 | 58 | 9,3 |
| KOBR 200T 4K | 380 | 50 | 190 | 1465 | 850 | 54 | 9,3 |
