Description :

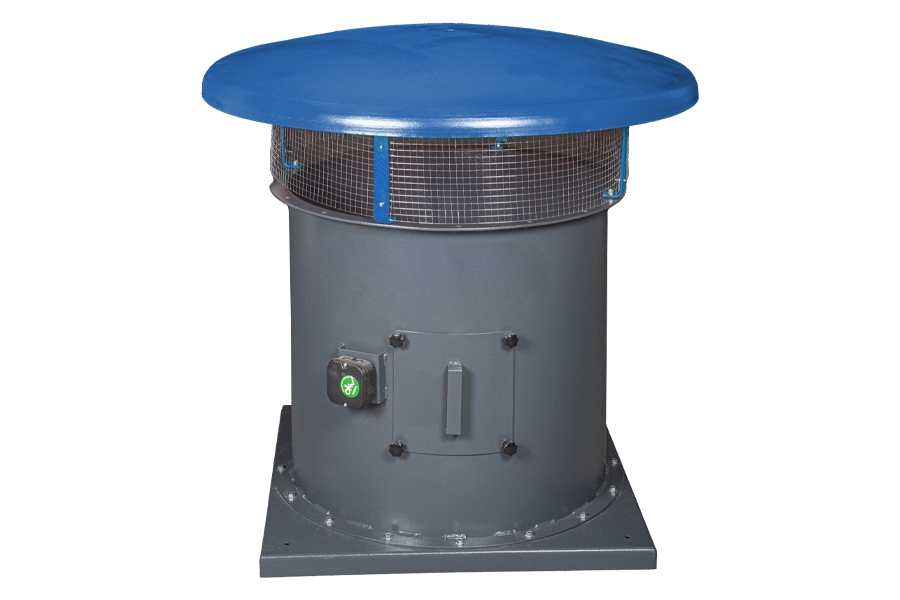

KSEF-C is used for pressurization, smoke exhaust, supply or extraction on roof top between min. 3.500 m3/h max. 100.000 m3/h air flow capacity. Factory, warehouse, hospital, shopping malls, cafes, restaurants etc. It is suitable for using on all buildings top for ventilation systems.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR BRAND | OMEGA-GAMAK-VOLT-WATT |
| MOTOR ENCLOSURE TYPE | TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER PAINT |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | ALUMINUM |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KSEF-C 400 | 230/380 | 50 | 0,37 | 1400 | 3500 | 69 | 38 |
| KSEF-C 450 | 230/380 | 50 | 0,55 | 1400 | 4400 | 69 | 42 |
| KSEF-C 500 | 230/380 | 50 | 0,55 | 1400 | 6000 | 72 | 44 |
| KSEF-C 560 | 230/380 | 50 | 0,75 | 1400 | 8200 | 75 | 48 |
| KSEF-C 630 | 230/380 | 50 | 1,10 | 1400 | 14000 | 80 | 60 |
| KSEF-C 710 | 230/380 | 50 | 1,50 | 1400 | 20000 | 83 | 73 |
| KSEF-C 800A | 230/380 | 50 | 2,20 | 1400 | 26000 | 89 | 85 |
| KSEF-C 800B | 230/380 | 50 | 3 | 1400 | 32000 | 90 | 91 |
| KSEF-C 900A | 380 | 50 | 4 | 1400 | 40000 | 94 | 95 |
| KSEF-C 900B | 380 | 50 | 5,5 | 1400 | 48000 | 94 | 96 |
| KSEF-C 900C | 380 | 50 | 11 | 1400 | 49000 | 97 | 108 |
| KSEF-C 1000A | 380 | 50 | 7,5 | 1400 | 56000 | 99 | 99 |
| KSEF-C 1000B | 380 | 50 | 15 | 1400 | 65000 | 100 | 108 |
| KSEF-C 1000C | 380 | 50 | 18,5 | 1400 | 73000 | 102 | 125 |
| KSEF-C 1120A | 380 | 50 | 22 | 1400 | 90000 | 104 | 128 |
| KSEF-C 1120B | 380 | 50 | 30 | 1400 | 100000 | 104 | 137 |
