Description :

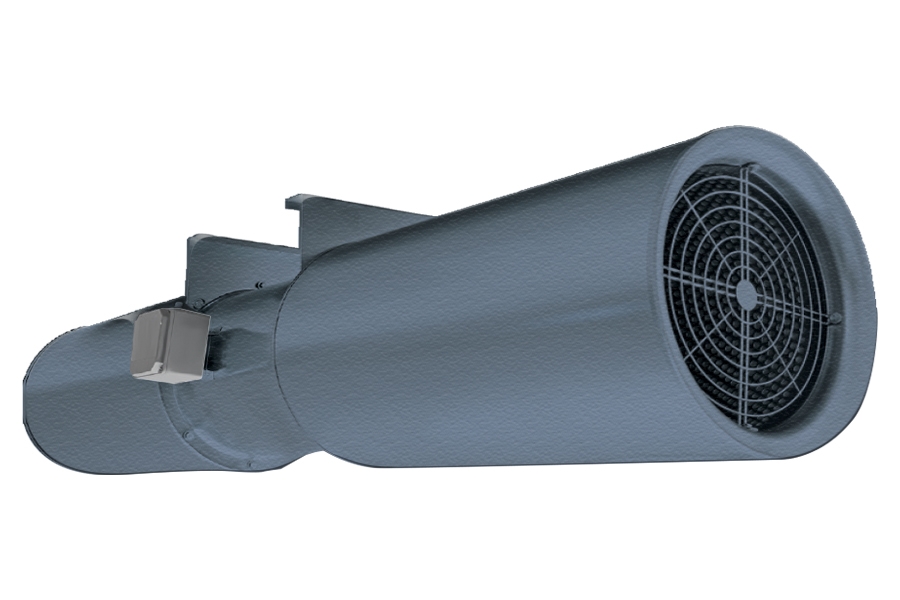

Jet fans are designed to be used at underground parking lots. They are more efficient than duct system where the air has to go through ducts and will lose power because of friction.
| MOTOR PROTECTION CLASS |
IP 54-IP 55 |
| MOTOR INSULATION CLASS | H CLASS |
| MOTOR EFFICIENCY CLASS | IE1-IE2 |
| MOTOR BRAND | WAT-WEG-GAMAK |
| MOTOR ENCLOSURETYPE | TEAO |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | ALUMINIUM |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | AIR SPEED (m/s) | THRUST FORCE (N) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 1.5m |
|---|---|---|---|---|---|---|
| KJET-A 315 | 8,3 - 16,6 | 6 - 24 | 0,20 - 0,80 | 1.450 - 2.900 | 2.320 - 4.640 | 71 - 85 |
| KJET-A 355 | 9,4 - 18,8 | 10 - 40 | 0,37 -1,50 | 1.450 - 2.900 | 3.360 - 6.720 | 74 - 87 |
| KJET-A 400 | 10,7 - 21,4 | 17- 68 | 0,50 - 2,20 | 1.450 - 2.900 | 4.835 - 9.670 | 76 - 90 |
| KJET-A 450 | 11,8 - 23,6 | 26 - 104 | 0,80 - 3,10 | 1.450 - 2.900 | 6.745 -13.490 | 79 - 93 |
| KJET-A 500 | 12,7 - 25,4 | 38 - 152 | 1,10 - 4,40 | 1.450 - 2.900 | 8.950 - 17.900 | 81 - 95 |
