Description :

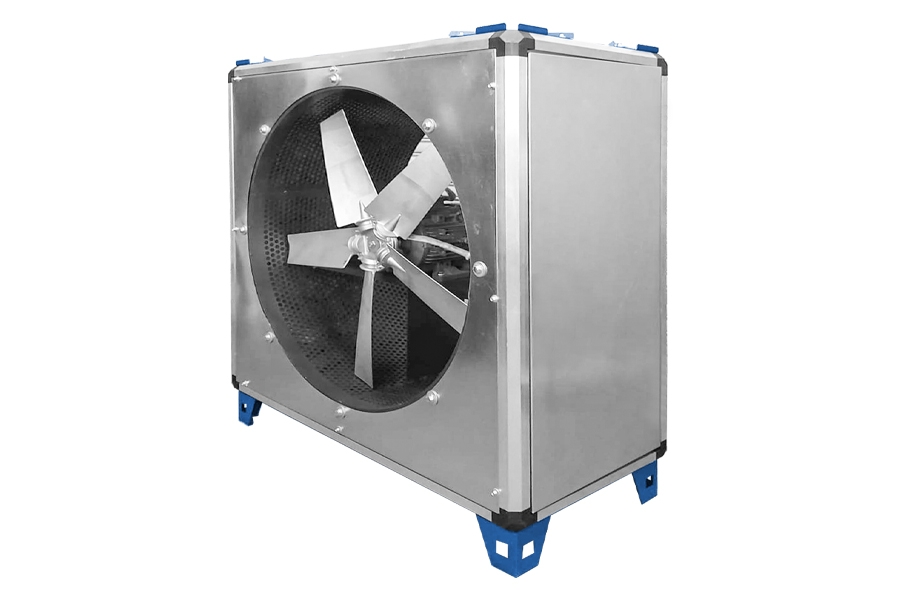

Axial box fans can be used in hard-to-install situtaions with its multiple connection point body. Default fan has an on-off switch and inbuilt sound attenuator.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| MOTOR BRAND | OLMEGA-GAMAK-VOLT-WAT |
| MOTOR ENCLOSURE TYPE | TEFC |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | ALUMINIUM |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KSEF-H 400 | 230/380 | 50 | 0,37 | 1400 | 3500 | 66 | 28 |
| KSEF-H 450 | 230/380 | 50 | 0,55 | 1400 | 4400 | 69 | 32 |
| KSEF-H 500 | 230/380 | 50 | 0,55 | 1400 | 6000 | 72 | 34 |
| KSEF-H 560 | 230/380 | 50 | 0,75 | 1400 | 8200 | 75 | 38 |
| KSEF-H 630 | 230/380 | 50 | 1,1 | 1400 | 14000 | 80 | 49 |
| KSEF-H 710 | 230/380 | 50 | 1,50 | 1400 | 20000 | 83 | 63 |
| KSEF-H 800A | 230/380 | 50 | 2,2 | 1400 | 26000 | 85 | 74 |
| KSEF-H 800B | 230/380 | 50 | 3 | 1400 | 32000 | 89 | 74 |
| KSEF-H 900A | 380 | 50 | 4 | 1400 | 40000 | 90 | 75 |
| KSEF-H 900B | 380 | 50 | 5,5 | 1400 | 48000 | 93 | 76 |
| KSEF-H 900C | 380 | 50 | 11 | 1400 | 49000 | 94 | 98 |
| KSEF-H 1000A | 380 | 50 | 7,5 | 1400 | 56000 | 94 | 79 |
| KSEF-H 1000B | 380 | 50 | 15 | 1400 | 65000 | 97 | 98 |
| KSEF-H 1000C | 380 | 50 | 18,5 | 1400 | 73000 | 99 | 100 |
| KSEF-H 1120A | 380 | 50 | 22 | 1400 | 90000 | 100 | 102 |
| KSEF-H 1120B | 380 | 50 | 30 | 1400 | 100000 | 102 | 106 |
