Description :

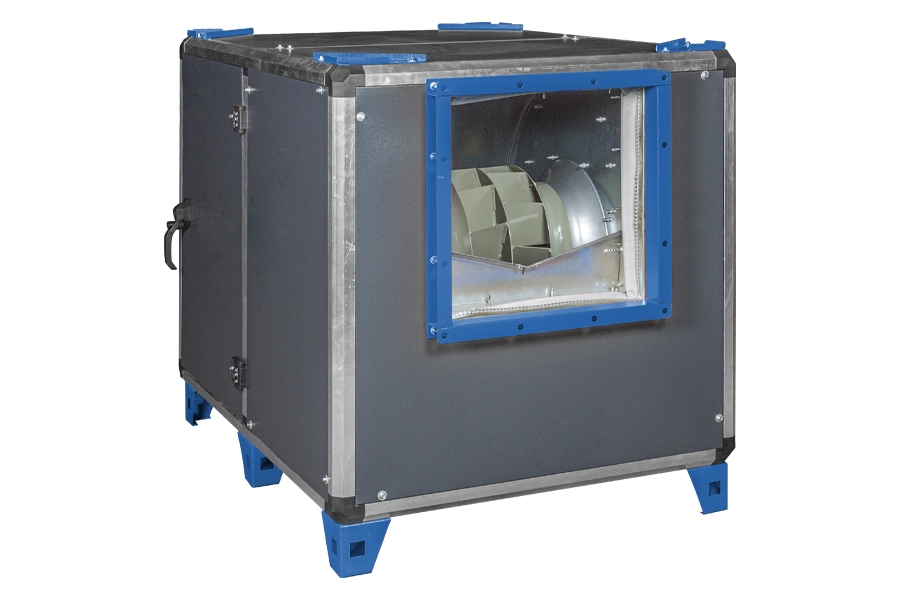

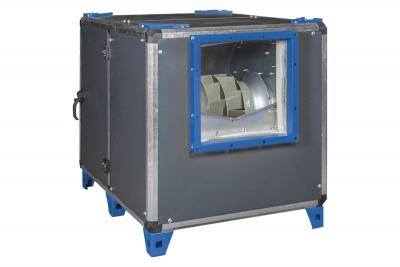

KAL-B Ventilation Unit can be used in the range of 500 m³/h to 100.000 m³/h air flow capacity, G4, G2, F7 etc. applicable as filter and production is made in different types and sizes if desired.
- Housing structure is aluminum carcass and the corners are produced as plastic and aluminum components.
- Panel thicknesses are produced as standard 25mm or optional 50mm rockwool insulated double skin, Electrostatic Powder Painted and Leak-proof Gasket.
- Double Inlet Radial Fans with Belt Driven Assemblies are Used inside.
- Easy installation is possible with the compact design.
- It is used for supply, exhaust or pressurization for the ventilation.
Factory, Hospital, Office, Laboratory, Shopping Center (shopping malls), Cafe, Restaurants, Parking lots etc. It is suitable for use in all structures which has air duct system.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| MOTOR BRAND | OMEGA-GAMAK-VOLT-WAT |
| MOTOR ENCLOSURE TYPE | TEFC |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL POWDER COATING |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KAL-B 280A | 230/380 | 50 | 1,1 | 2800 | 3000 | 65 | 44 |
| KAL-B 280B | 230/380 | 50 | 2,2 | 2800 | 5500 | 68 | 45 |
| KAL-B 315A | 230/380 | 50 | 2,2 | 2800 | 7000 | 70 | 63 |
| KAL-B 315B | 230/380 | 50 | 2 | 2800 | 8000 | 71 | 64 |
| KAL-B 355A | 230/380 | 50 | 3 | 2800 | 9500 | 71 | 84 |
| KAL-B 355B | 380 | 50 | 4 | 2800 | 10000 | 73 | 87 |
| KAL-B 400A | 380 | 50 | 4 | 1400 | 13000 | 73 | 105 |
| KAL-B 400B | 380 | 50 | 5,5 | 1400 | 15000 | 75 | 109 |
| KAL-B 450A | 380 | 50 | 5,5 | 1400 | 16000 | 75 | 134 |
| KAL-B 450B | 380 | 50 | 7,5 | 1400 | 18500 | 77 | 139 |
| KAL-B 500A | 380 | 50 | 7,5 | 1400 | 20000 | 77 | 168 |
| KAL-B 500B | 380 | 50 | 11 | 1400 | 22500 | 75 | 178 |
| KAL-B 560A | 380 | 50 | 11 | 1400 | 25000 | 75 | 282 |
| KAL-B 560B | 380 | 50 | 15 | 1400 | 30000 | 74 | 290 |
| KAL-B 630A | 380 | 50 | 15 | 1400 | 32500 | 74 | 325 |
| KAL-B 630B | 380 | 50 | 18,5 | 1400 | 37000 | 76 | 345 |
