Description :

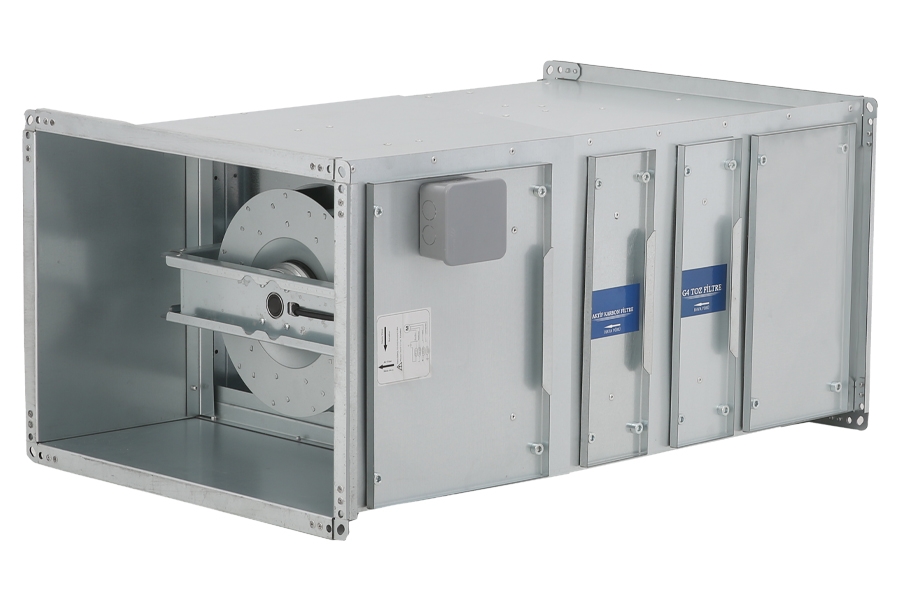

KFU is produced with G4 dust filter and Active Carbon filter as standard in the range of 1.500 m3 / h - 4.000 m3 / h air flow capacity. Optional fan filters can be changed. In this way, it can be shaped according to the required application. Factory, hospital, office, laboratory, super markets, shopping malls, cafes, restaurants, etc. It is suitable for use in all buildings where has duct system.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR BRAND | OMEGA-GAMAK-VOLT-WAT |
| MOTOR ENCLOSURE TYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | ALUMINIUM-SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KFU 50-35 | 230 | 50 | 230 | 2700 | 1500 | 65 | 45 |
| KFU 80-40 | 230 | 50 | 210 | 1400 | 3300 | 70 | 70 |
| KFU 90-45 | 230 | 50 | 430 | 1380 | 4000 | 85 | 95 |
