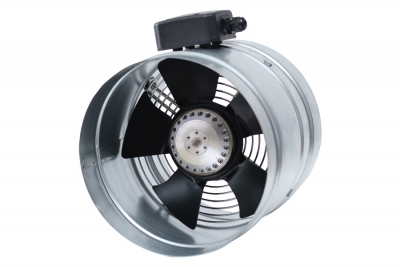

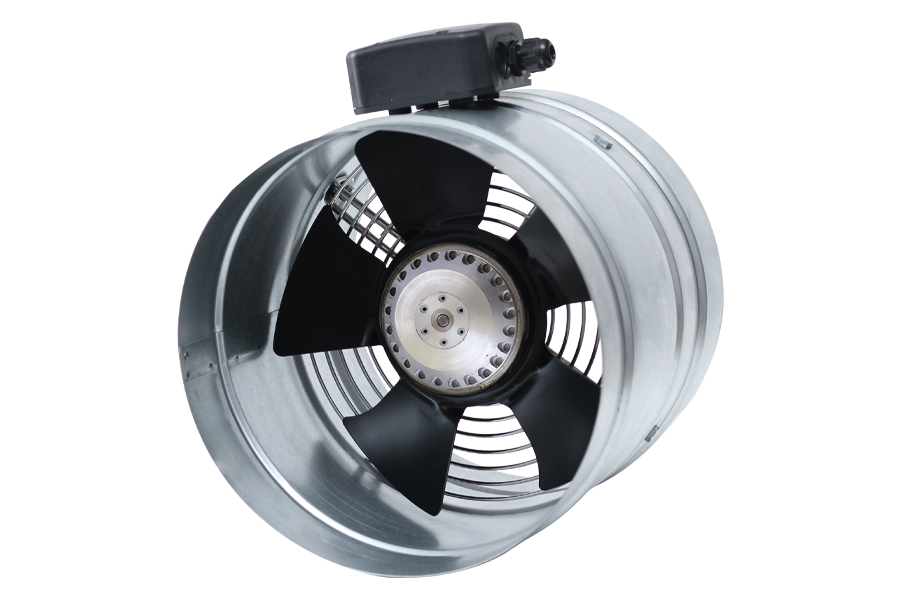

Description :
KBA circular duct type axial fan is used to discharge the polluted air of the environment or to supply fresh air industrial and living areas with round
air ducts with a diameter of 200mm to 300mm in the range of 650 - 2.200 m3 / h air flow capacity.
It can be preferred in commercial and residential ventilation needs with its easy installation to the duct, low noise level and power consumption
to optimum ventilation needs.Factory, hospital, office, laboratory, shopping mall , cafe, restaurants, etc. It is suitable for use in all structures with a
round duct system.
| MOTOR INSULATION CLASS | IP 44 |
| MOTOR PROTECTION CLASS | H CLASS |
| MOTOR ENCLOSURETYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | GALVANIZED |
| IMPELLER TYPE | AXIAL |
| IMPELLER MATERIAL | SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING TEMPERATURE | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80 ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KBA 200 | 230 | 50 | 70 | 2670 | 650 | 50 | 2,7 |
| KBA 250 | 230 | 50 | 70 | 2215 | 1480 | 55 | 3,6 |
| KBA 300 | 230 | 50 | 125 | 1750 | 2200 | 57 | 4,6 |
