Description :

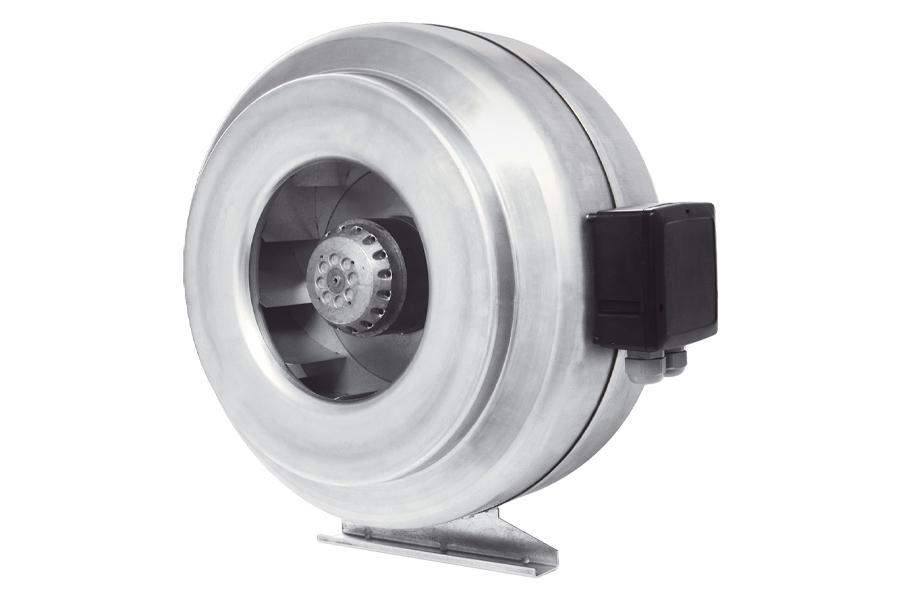

KVX is used for supplying 100 mm to 315 mm circular ventilation ducts with fresh air or evacuation of air in the range of minimum 400 m3/h and maximum 1.900 m3/h air flow capacity. It is an ideal choice with its easy installation to the duct, silent operation and low energy consumption. Factory, hospital, office, laboratory, shopping mall, cafe, restaurants, parking lot, etc. It is suitable for use in all structures with a round duct system.
| MOTOR INSULATION CLASS | IP 44 |
| MOTOR PROTECTION CLASS | H CLASS |
| MOTOR ENCLOSURETYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL E. POWDER COATING |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING TEMPERATURE | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KVX 100 | 230 | 50 | 68 | 2400 | 400 | 42 | 3,0 |
| KVX 125 | 230 | 50 | 76 | 2350 | 500 | 43 | 3,1 |
| KVX 150 | 230 | 50 | 110 | 2200 | 650 | 47 | 3,6 |
| KVX 160 | 230 | 50 | 110 | 2200 | 650 | 47 | 3,6 |
| KVX 200 | 230 | 50 | 155 | 2600 | 1000 | 52 | 5,2 |
| KVX 250 | 230 | 50 | 150 | 2600 | 1200 | 57 | 5,7 |
| KVX 315 | 230 | 50 | 187 | 2500 | 1900 | 57 | 7,3 |
