Description :

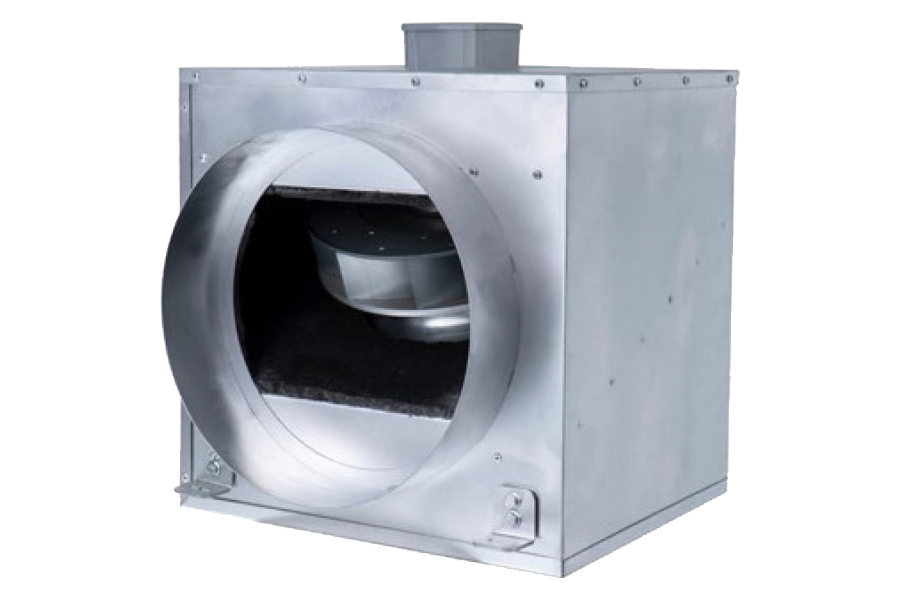

KCAB fans can be used between 320m3/h -2.000m3/h air volume requirements. Easy to install and low noise level with 20mm sound absorbing construction and low power usage makes it a good option for commercial use
| MOTOR INSULATION CLASS | IP 44 |
| MOTOR PROTECTION CLASS | F CLASS |
| MOTOR ENCLOSURETYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL E. POWDER COATING |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING TEMPERATURE | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KCAB 100 | 230 | 50 | 68 | 2400 | 400 | 40 | 6,0 |
| KCAB 125 | 230 | 50 | 76 | 2350 | 500 | 40 | 6,2 |
| KCAB 150 | 230 | 50 | 110 | 2200 | 770 | 43 | 7,2 |
| KCAB 160 | 230 | 50 | 110 | 2200 | 780 | 44 | 7,2 |
| KCAB 200 | 230 | 50 | 155 | 2600 | 1100 | 45 | 10,4 |
| KCAB 250 | 230 | 50 | 150 | 2600 | 1230 | 47 | 11,4 |
| KCAB 315 | 230 | 50 | 187 | 2500 | 2000 | 49 | 14,6 |
