Description :

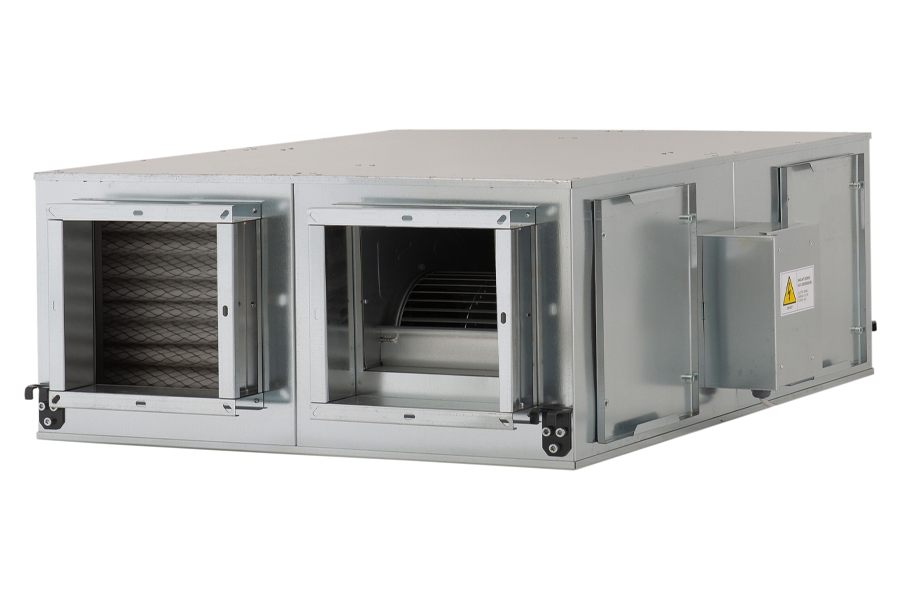

Ceiling Type Heat Recovery Device (Energy Saving Forward Curved Direct Drive Fan + Aluminum Heat Exchanger for Long Life Forward Curved). Low energy consumption and low noise levels. G4 type for prefiltration. Control panel can operate both sides flow rate with adjustable stages, Can control electric heater. 10mm thick material inside unit for heat and noise insulatio
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC EXTERNAL ROTOR MOTOR |
| EFFICIENCY | %50 - %70 |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL |
| IMPELLER TYPE | FORWARD CURVED |
| IMPELLER MATERIAL | ALUMINUM-GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -10 - +40 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| KGK-F 10 | 230 | 50 | 2x150 | 1450 | 45 | 90 |
| KGK-F 15 | 230 | 50 | 2x375 | 2800 | 46 | 116 |
| KGK-F 25 | 230 | 50 | 2x450 | 3500 | 48 | 138 |
| KGK-F 40 | 230 | 50 | 2x550 | 4000 | 52 | 152 |
| KGK-F 50 | 230 | 50 | 2x1270 | 5600 | 60 | 195 |
