Description :

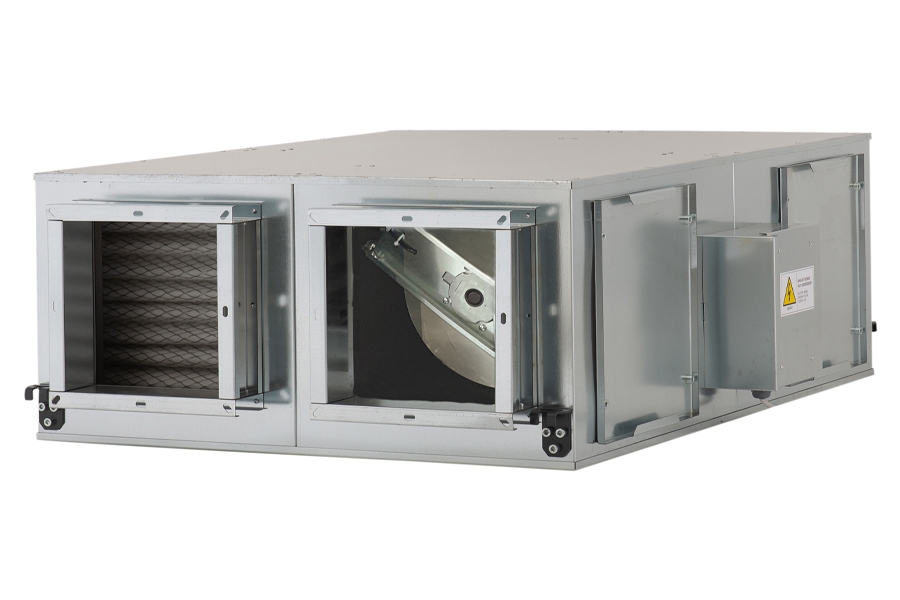

Ceiling Type Heat Recovery Device (Energy Saving Plug Fan+Aluminum Heat Exchanger for Long Life) Plug Fan Aluminum or Galvanized Sheet Metal. (Backward Curved). Low energy consumption. G4 type for prefiltration. Control panel can operate both sides flow rate with adjustable stages, Can control electric heater. 10mm thick material inside unit for heat and noise insulation.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC EXTERNAL ROTOR MOTOR |
| EFFICIENCY | %50 - %70 |
| BODY MATERIAL | GALVANIZED SHEET METAL |
| BODY COATING | OPTIONAL |
| IMPELLER TYPE | BACKWARD CURVED |
| IMPELLER MATERIAL | ALUMINUM-GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -10 - +40 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KGK 10 | 230 | 50 | 2x230 | 2670 | 1800 | 43 | 80 |
| KGK 20 | 230 | 50 | 2x210 | 2400 | 2500 | 45 | 105 |
| KGK 30 | 230 | 50 | 2x400 | 1470 | 3000 | 48 | 125 |
| KGK 40 | 230 | 50 | 2x510 | 1400 | 4000 | 52 | 135 |
| KGK 50 | 230 | 50 | 2x800 | 1380 | 6000 | 79 | 185 |
