Description :

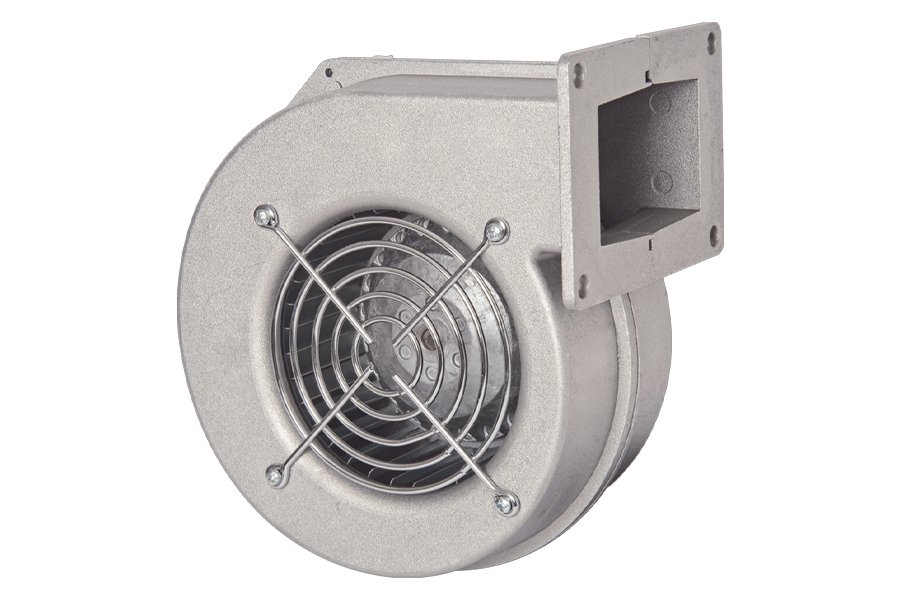

KAS fans with their aluminum injected bodies, forward-curved impeller and small size can be used in boilers.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC EXTERNAL ROTOR MOTOR |
| BODY MATERIAL | ALUMINUM |
| IMPELLER TYPE | FORWARD CURVED |
| IMPELLER MATERIAL | GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KAS 120 - 60 | 230 | 50 | 80 | 2300 | 250 | 55 | 2.8 |
| KAS 140 - 60 | 230 | 50 | 105 | 2250 | 400 | 58 | 3.4 |
| KAS 160 - 60 | 230 | 50 | 200 | 2100 | 600 | 61 | 4,3 |
