Description :

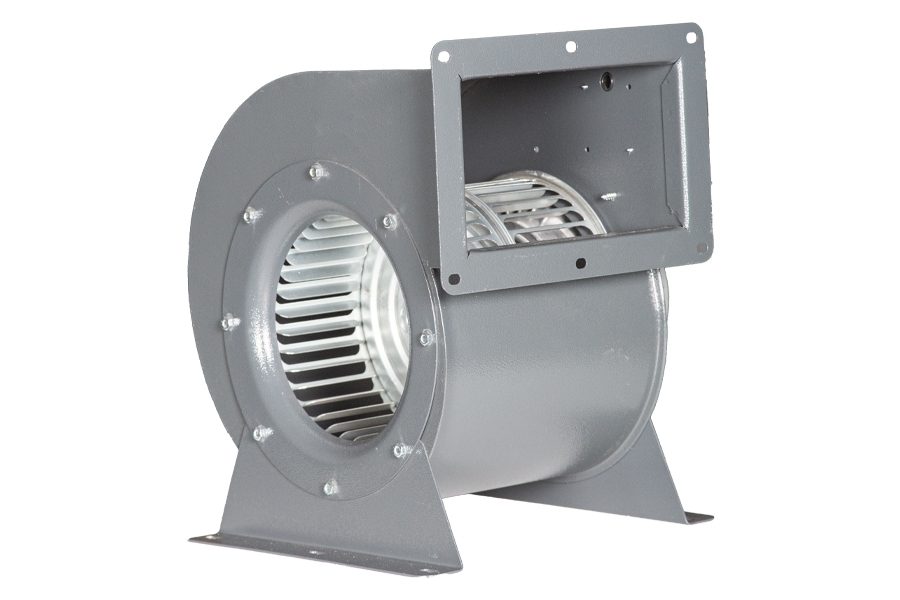

KCES fans are used for suction and discharge in Cabinet, Ventilation units, Central Air-conditioner units, etc. Each fans are suit its mechanical design according to maximum operating limits.
| MOTOR PROTECTION CLASS |
IP 44 |
| MOTOR INSULATION CLASS | B CLASS |
| MOTOR ENCLOSURE TYPE | AC - TEFC |
| BODY MATERIAL | SHEET METAL |
| BODY COATING | ELECTROSTATIC POWDER COATING |
| IMPELLER TYPE | FORWARD CURVED |
| IMPELLER MATERIAL | GALVANIZED SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KCES | 230 | 50 | 217 | 1420 | 1300 | 46 | 9 |
