Description :

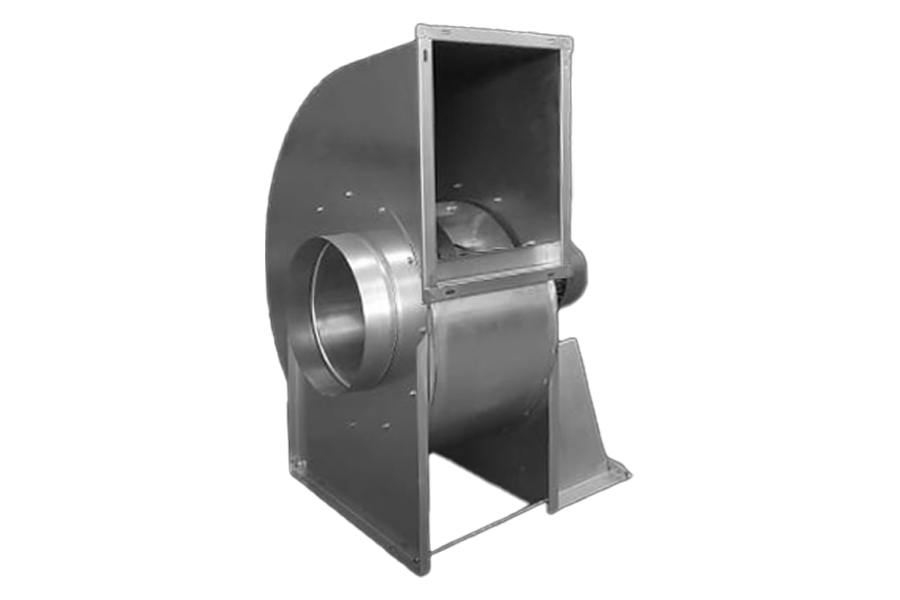

Pressure: 500 - 2.100 Pa. Airflow: 4.000 - 23.000 m3/h. Backward curved impeller. Direct coupling or belt driven. Minimum engine power, max. capacity. Used areas: Aspiration of clean or slightly dusty or clean air. Aspiration of exhaust fumes.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC - TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | GALVANİZED |
| IMPELLER TYPE | BACKWARD CURVED |
| BODY COATING | ELECTROSTATIC POWDER COATING |
| IMPELLER MATERIAL | DKP SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| KRSR 1 | 230/380 | 50 | 0.37 | 1400 | 2500 | 26 |
| KRSR 2 | 230/380 | 50 | 0.75 | 1400 | 5000 | 38 |
| KRSR 3 | 230/380 | 50 | 1,1 | 1400 | 6000 | 50 |
| KRSR 4 | 230/380 | 50 | 1,5 | 1400 | 8000 | 51 |
| KRSR 5 | 230/380 | 50 | 2,2 | 1400 | 9000 | 58 |
| KRSR 6 | 380 | 50 | 3 | 1400 | 11000 | 68 |
| KRSR 7 | 380 | 50 | 4 | 1400 | 13000 | 90 |
| KRSR 8 | 380 | 50 | 5,5 | 1400 | 16000 | 136 |
