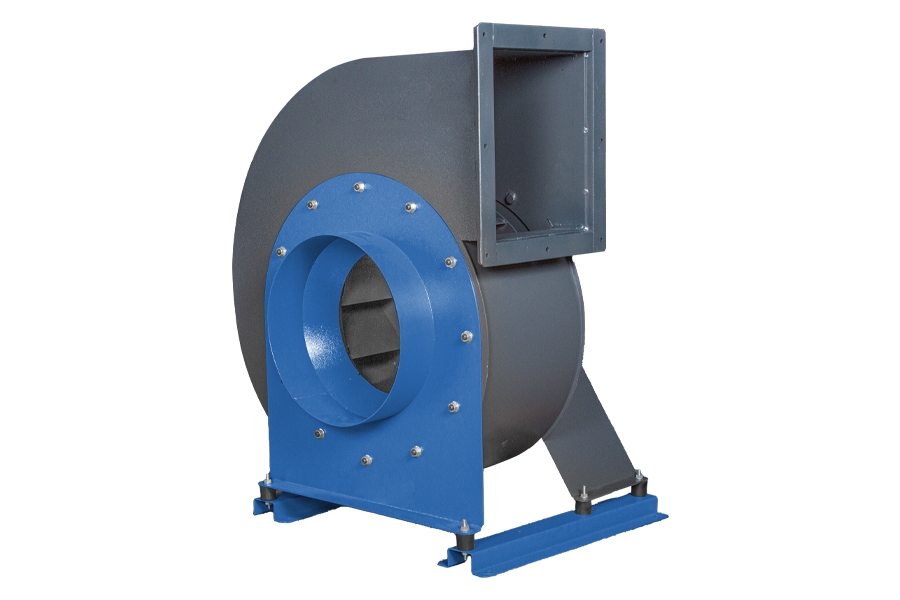

Description :
Pressure: 400-1.700 pa. Airflow: 1.500-15.000m3/h Backward curved impeller. Direct coupling or belt driven. Aspiration of clean or slighty dusty air. Furniture and polishing workshops. The industrial kitchen aspiration system.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC - TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | DKP SHEET METAL |
| IMPELLER TYPE | BACKWARD CURVED |
| BODY COATING | ELECTROSTATIC POWDER COATING |
| IMPELLER MATERIAL | DKP SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| STANDARDS |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KUSM-1 | 230/380 | 50 | 0.37 | 1400 | 1500 | 61 | 27,5 |
| KUSM-2 | 230/380 | 50 | 0.75 | 1400 | 2500 | 64 | 34 |
| KUSM-3 | 230/380 | 50 | 1,1 | 1400 | 3500 | 65 | 41 |
| KUSM-4 | 230/380 | 50 | 1,5 | 1400 | 4500 | 67 | 51 |
| KUSM-5 | 230/380 | 50 | 2,2 | 1400 | 6000 | 69 | 63,4 |
| KUSM-6 | 230/380 | 50 | 3 | 1400 | 6500 | 70 | 67 |
| KUSM-7 | 380 | 50 | 4 | 1400 | 7000 | 74 | 70 |
| KUSM-8 | 380 | 50 | 5,5 | 1400 | 9000 | 77 | 98 |
| KUSM-9 | 380 | 50 | 7,5 | 1400 | 12000 | 79 | 121 |
| KUSM-10 | 380 | 50 | 11 | 1400 | 15000 | 84 | 150 |
