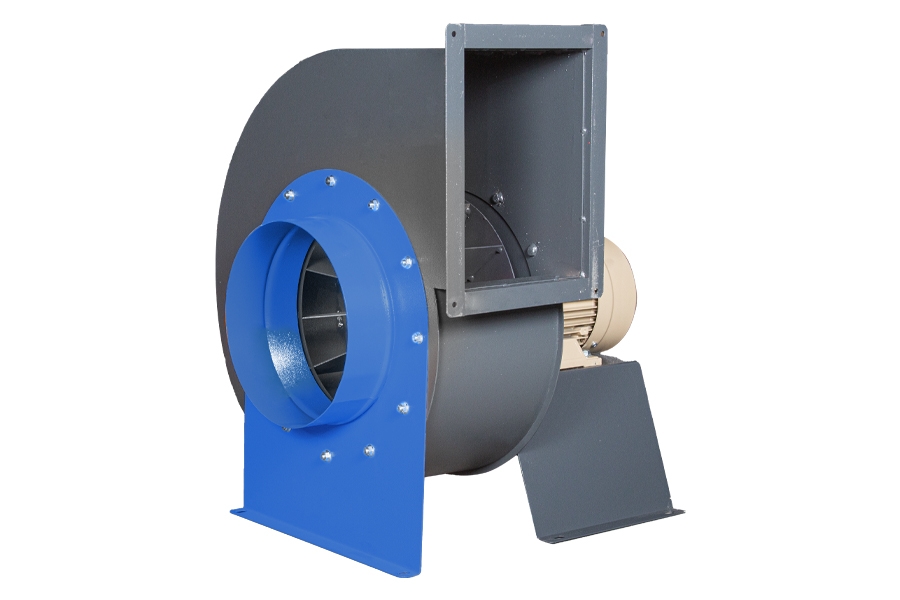

Description :
Pressure: 500 - 2.100 Pa. Airflow: 4.000 - 23.000 m3/h. Backward curved impeller. Direct coupling or belt driven. Minimum engine power, max. capacity. Used areas: Aspiration of clean or slightly dusty or clean air. Aspiration of exhaust fumes.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC - TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | DKP SHEET METAL |
| IMPELLER TYPE | BACKWARD CURVED |
| BODY COATING | ELECTROSTATIC POWDER COATING |
| IMPELLER MATERIAL | DKP SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (KW) | REV (RPM) | FLOW RATE (m3/h) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| KUGR 300 | 230/380 | 50 | 0,75 | 2800 | 4000 | 91 |
| KUGR 320 | 230/380 | 50 | 1,5 | 2800 | 6000 | 104 |
| KUGR 350A | 230/380 | 50 | 2,2 | 2800 | 6500 | 145 |
| KUGR 350B | 230/380 | 50 | 3 | 2800 | 9000 | 158 |
| KUGR 400A | 380 | 50 | 4 | 2800 | 10000 | 175 |
| KUGR 400B | 380 | 50 | 5,5 | 2800 | 13000 | 225 |
| KUGR 450A | 380 | 50 | 7,5 | 2800 | 15000 | 240 |
| KUGR 450B | 380 | 50 | 11 | 2800 | 18000 | 255 |
| KUGR 500A | 380 | 50 | 15 | 2800 | 21000 | 325 |
| KUGR 500B | 380 | 50 | 18,5 | 2800 | 23000 | 375 |
