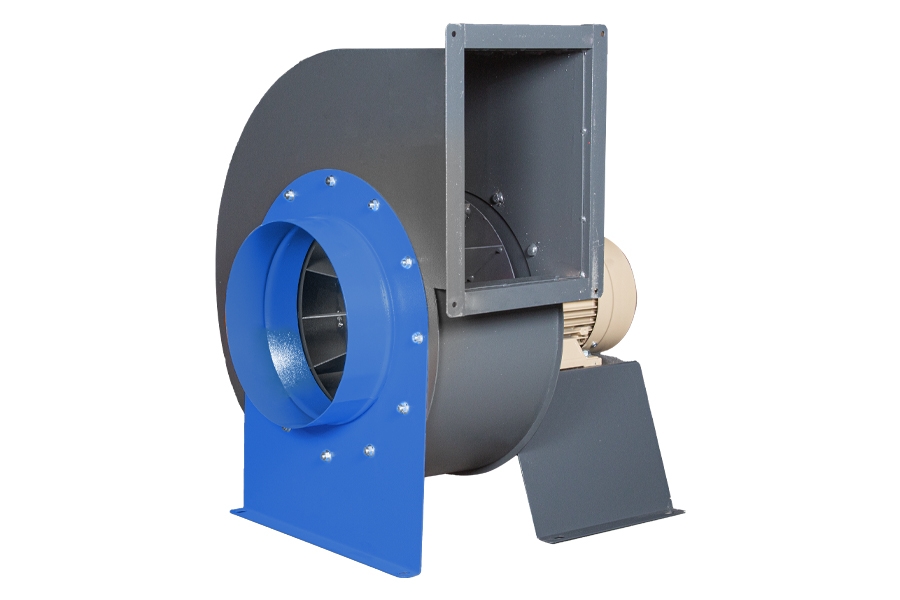

Description :
Pressure: 400 - 1400 pa. Airflow: 3.500 - 50.000 m3/h. Backward curved impeller. Direct coupling or belt driven. Minimum engine power, max. capacity. Used areas: Aspiration of clean or slightly dusty or clean air. Aspiration of exhaust fumes.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC - TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | DKP SHEET METAL |
| IMPELLER TYPE | BACKWARD CURVED |
| BODY COATING | ELECTROSTATIC POWDER COATING |
| IMPELLER MATERIAL | DKP SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (KW) | REV (RPM) | FLOW RATE (m3/h) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| KUGS 320 | 230/380 | 50 | 0.55 | 1450 | 3500 | 78 |
| KUGS 350A | 230/380 | 50 | 0.55 | 1450 | 3800 | 78 |
| KUGS 350B | 230/380 | 50 | 0.75 | 1450 | 5000 | 78 |
| KUGS 400A | 230/380 | 50 | 0.75 | 1450 | 6000 | 91 |
| KUGS 400B | 230/380 | 50 | 1,1 | 1450 | 7000 | 98 |
| KUGS 450A | 230/380 | 50 | 1,1 | 1450 | 8000 | 98 |
| KUGS 450B | 230/380 | 50 | 1,5 | 1450 | 10000 | 104 |
| KUGS 500A | 230/380 | 50 | 2,2 | 1450 | 10500 | 145 |
| KUGS 500B | 230/380 | 50 | 2,2 | 1450 | 12000 | 145 |
| KUGS 500C | 230/380 | 50 | 3 | 1450 | 13000 | 158 |
| KUGS 550A | 380 | 50 | 4 | 1450 | 15000 | 175 |
| KUGS 550B | 380 | 50 | 4 | 1450 | 16000 | 175 |
| KUGS 630A | 380 | 50 | 5,5 | 1450 | 18000 | 225 |
| KUGS 630B | 380 | 50 | 7,5 | 1450 | 20000 | 240 |
| KRFH 630C | 380 | 50 | 7,5 | 1450 | 22000 | 240 |
| KUGS 700A | 380 | 50 | 11 | 1450 | 26000 | 255 |
| KUGS 700B | 380 | 50 | 15 | 1450 | 30000 | 325 |
| KUGS 800A | 380 | 50 | 18,5 | 1450 | 40000 | 375 |
| KUGS 800B | 380 | 50 | 22 | 1450 | 50000 | 410 |
