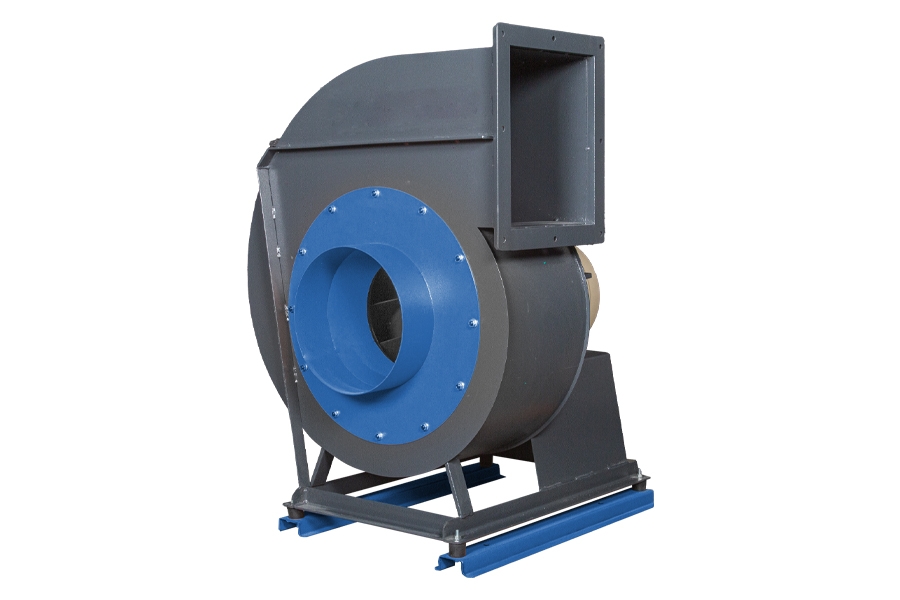

Description :
Pressure: 2.800 - 4.250 Pa. Airflow: 6.500 - 22.500 m3/h. Backward curved impeller. Direct coupling or belt driven. Minimum engine power, max. capacity. Used areas: Aspiration of clean or slightly dusty or clean air. Aspiration of exhaust fumes.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC - TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | DKP SHEET METAL |
| IMPELLER TYPE | BACKWARD CURVED |
| BODY COATING | ELECTROSTATIC POWDER COATING |
| IMPELLER MATERIAL | DKP SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (KW) | REV (RPM) | FLOW RATE (m3/h) |
PRESSURE (Pa) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|
| KUSK-Y 10 | 380 | 50 | 7.5 | 2800 | 6500 | 2800 | 95 | 110 |
| KUSK-Y 15 | 380 | 50 | 11 | 2800 | 8500 | 3000 | 114 | 168 |
| KUSK-Y 20 | 380 | 50 | 15 | 2800 | 10000 | 3500 | 119 | 205 |
| KUSK-Y 25 | 380 | 50 | 18,5 | 2800 | 125000 | 3700 | 123 | 245 |
| KUSK-Y 30 | 380 | 50 | 22 | 2800 | 15000 | 4000 | 127 | 390 |
| KUSK-Y 40 | 380 | 50 | 30 | 2800 | 20000 | 4150 | 131 | 490 |
| KUSK-Y 50 | 380 | 50 | 37 | 2800 | 22500 | 4250 | 133 | 585 |
| KUSK-Y 60 | 380 | 50 | 45 | 2800 | 37500 | 5000 | 136 | 600 |
