Description :

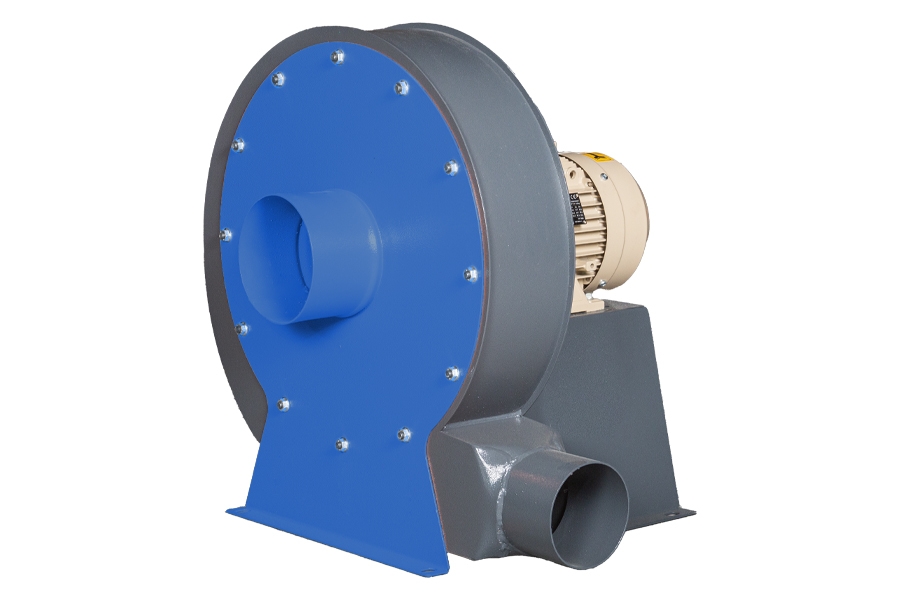

Pressure: 1.300-8.000 Pa. Airflow: 950 - 6.000m3/h Backward curved impeller. Direct coupling or belt driven. Collecting dust. (Marble dust, granule, plastique etc.) Fume-gas elimination. At printing houses different companies.
| MOTOR PROTECTION CLASS |
IP 55 |
| MOTOR INSULATION CLASS | F CLASS |
| MOTOR ENCLOSURE TYPE | AC - TEFC |
| MOTOR EFFICIENCY CLASS | IE2-IE3 |
| BODY MATERIAL | DKP SHEET METAL |
| IMPELLER TYPE | BACKWARD CURVED |
| BODY COATING | ELECTROSTATIC POWDER COATING |
| IMPELLER MATERIAL | DKP SHEET METAL |
| DUTY CYCLE | IEC Duty Cycle-S1 |
| WORKING AMBIENT TEMP | -20 - +50 °C |
| DIRECTIVE |
IEC-60335-2-80, ISO 1940-1 |
TECHNICAL SPECIFICATIONS
| MODEL | VOLTAGE (V) | FREQUENCY (Hz) | POWER (W) | REV (RPM) | FLOW RATE (m3/h) | SOUND PRESSURE dB(A) 3m | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| KUSR-1 | 230/380 | 50 | 0.37 | 2800 | 950 | 72 | 24,5 |
| KUSR-2 | 230/380 | 50 | 0.75 | 2800 | 1000 | 74 | 31 |
| KUSR-3 | 230/380 | 50 | 1,1 | 2800 | 1300 | 75 | 35 |
| KUSR-4 | 230/380 | 50 | 1,5 | 2800 | 1600 | 79 | 42 |
| KUSR-5 | 230/380 | 50 | 2,2 | 2800 | 1900 | 82 | 45 |
| KUSR-6 | 230/380 | 50 | 3 | 2800 | 2200 | 86 | 56 |
| KUSR-7 | 380 | 50 | 4 | 2800 | 2500 | 88 | 64 |
| KUSR-8 | 380 | 50 | 5,5 | 2800 | 3000 | 91 | 85 |
| KUSR-9 | 380 | 50 | 7,5 | 2800 | 4000 | 92 | 98 |
| KUSR-10 | 380 | 50 | 11 | 2800 | 6000 | 96 | 130 |
